The Aquaguard Designo NXT Under the Counter RO+UV has an integrated, single-unit design, unlike other UTC purifiers that come with two separate units.
The purifier is thoughtfully designed as it comes with a grip handle and wheels that helps in easy movement and accessibility. The integrated tank comes with high storage capacity of up to 7 litres that ensures you never run out of water.
This water purifier ensures you get the purest drinking water with its Water Saving RO technology thats saves up to 60 % more water coupled with the latest 5th Gen UV LED that is faster, free from Mercury, and lasts longer up to 10 years.
This high-performance water purifier is equipped with an inbuilt pump that works even at low or no water pressure. The purifier's sleek, compact design and 3-in-1 Active Copper Technology make it a superior choice for most households.
Water Saver RO Technology
Integrated single-unit design
Inbuilt Pressure Pump ensures consistent water flow
Wheels & Handle for Easy Movement & Accessibility
| Feature | Details |
|---|---|
| Dimensions (WxDxH) | 257.8 x 461.5 x 390 mm |
| Weight | 9 Kg |
| Installation Type | UTC |
| Storage Capacity | 6.6 Ltrs |
| Purification Modules | i-Filter, Chemi-Block, High recovery Reverse Osmosis Cartridge, UV Reactor, Active Copper with Zinc Booster Cartridge |
| Recommended For Hardness | Upto 600 mg/L |
| Applicable TDS Range | 0 - 2000 mg/L |
| Input Water Pressure | 0 to 3 Kg/cm2 |
| Input Water Temperature | 10 - 40 C |
| Input Water Chlorine (Max) | 0.2 mg/L |
| Input Water Iron | 0.1 mg/L |
| Input Water Turbidity (Max) | 5 NTU |
| UV LED Reactor | 6.2 Wattage |
| Operating Input Voltage | 150 - 250 V AC / 50 Hz |
| Power Consumption | 72 watts (maxx) |

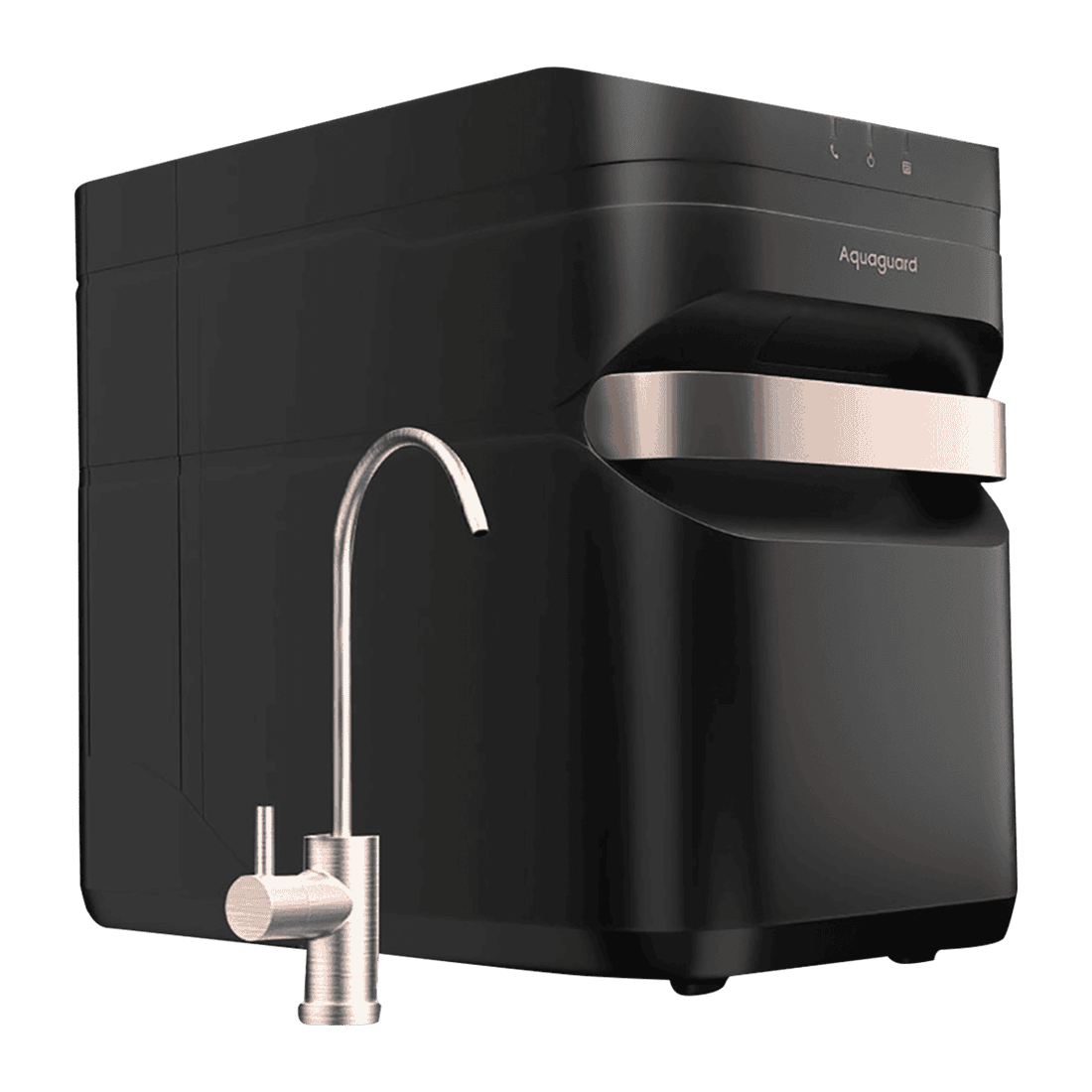

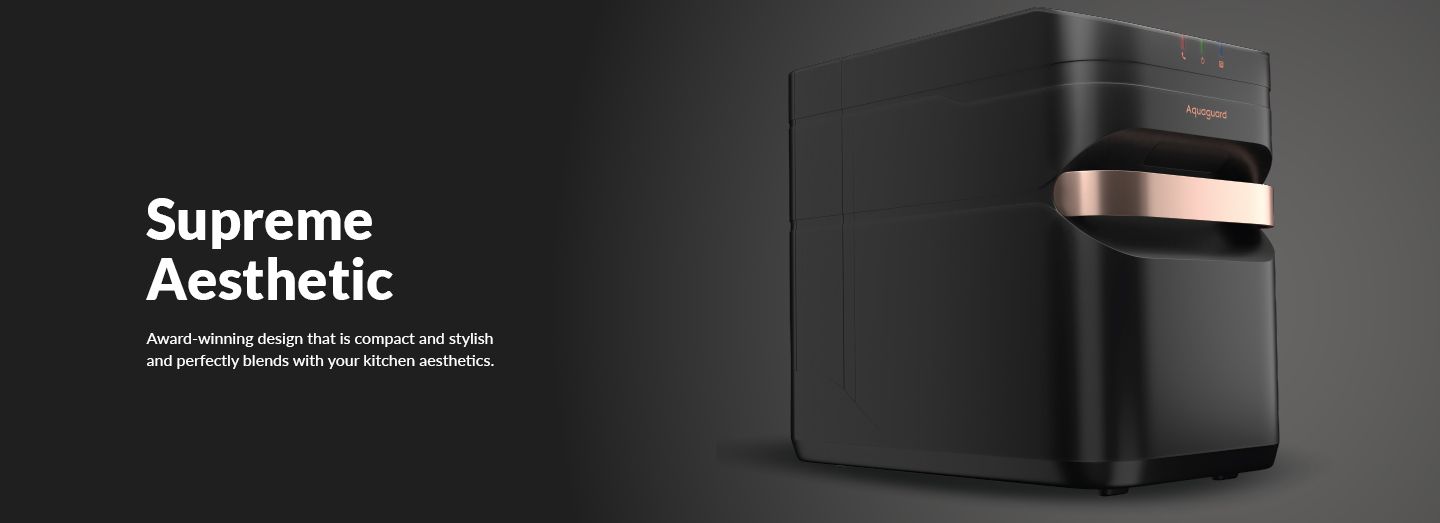

The Aquaguard Designo NXT Under the Counter UV+UF has an integrated, single-unit design, unlike other UTC purifiers that come with two separate units. The new-age purifier is also compatible with the latest side-by-side door refrigerators for the extra convenience.

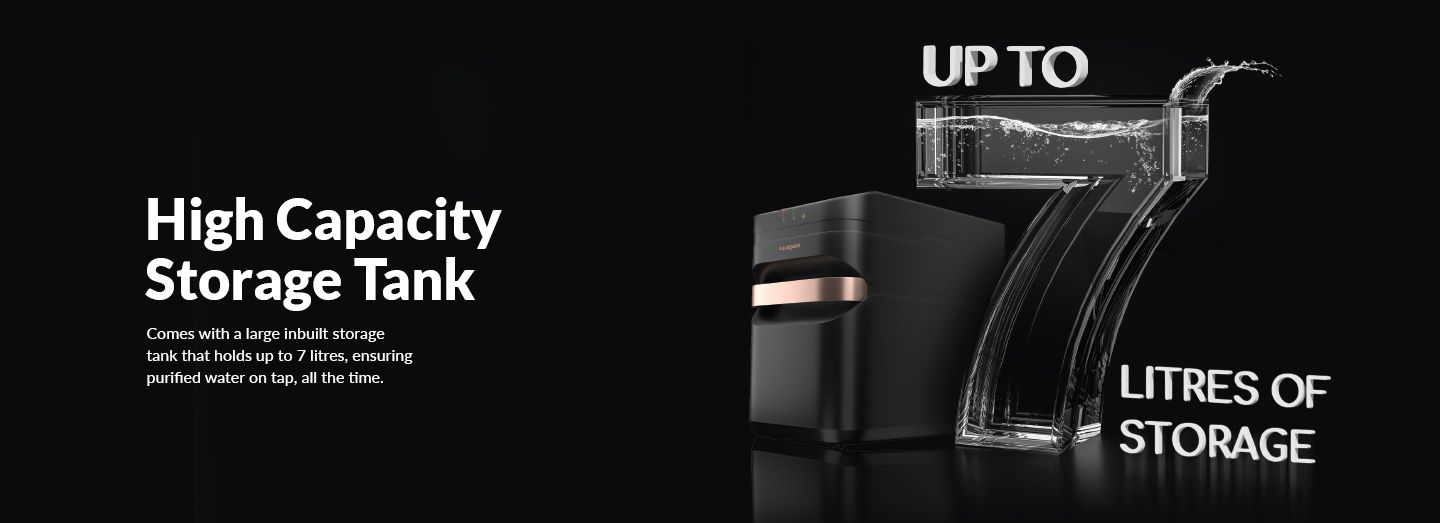

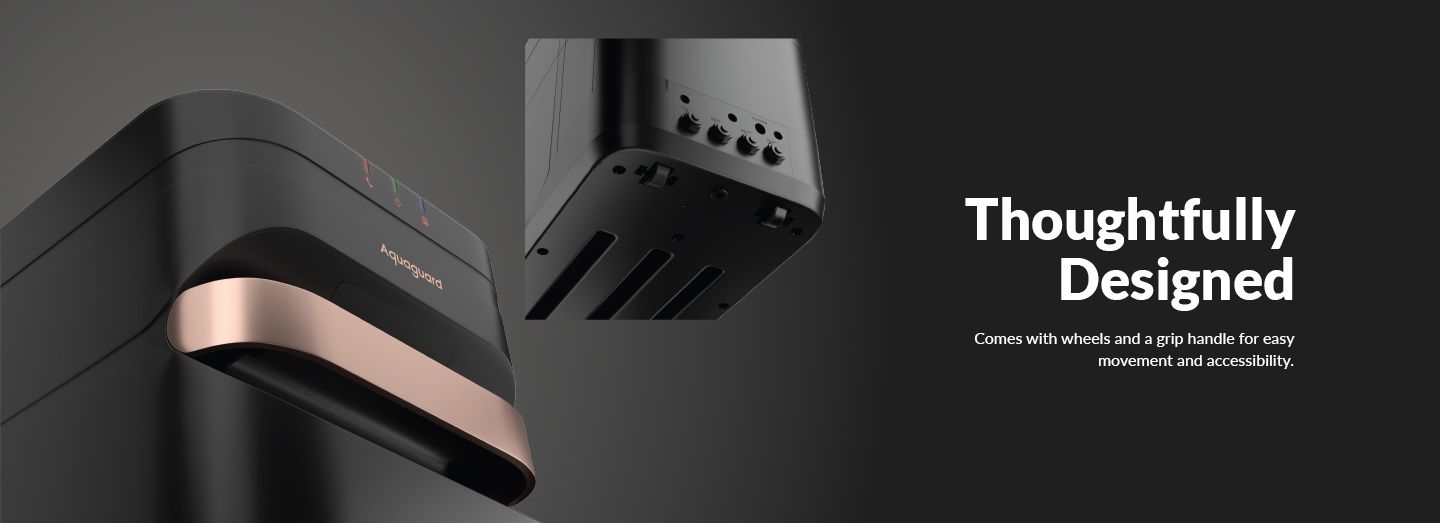

The purifier is thoughtfully designed as it comes with a grip handle and wheels that helps in easy movement and accessibility. The integrated tank comes with high storage capacity of up to 7 litres that provides copper-infused water with its 3-in-1 Active Copper technology.

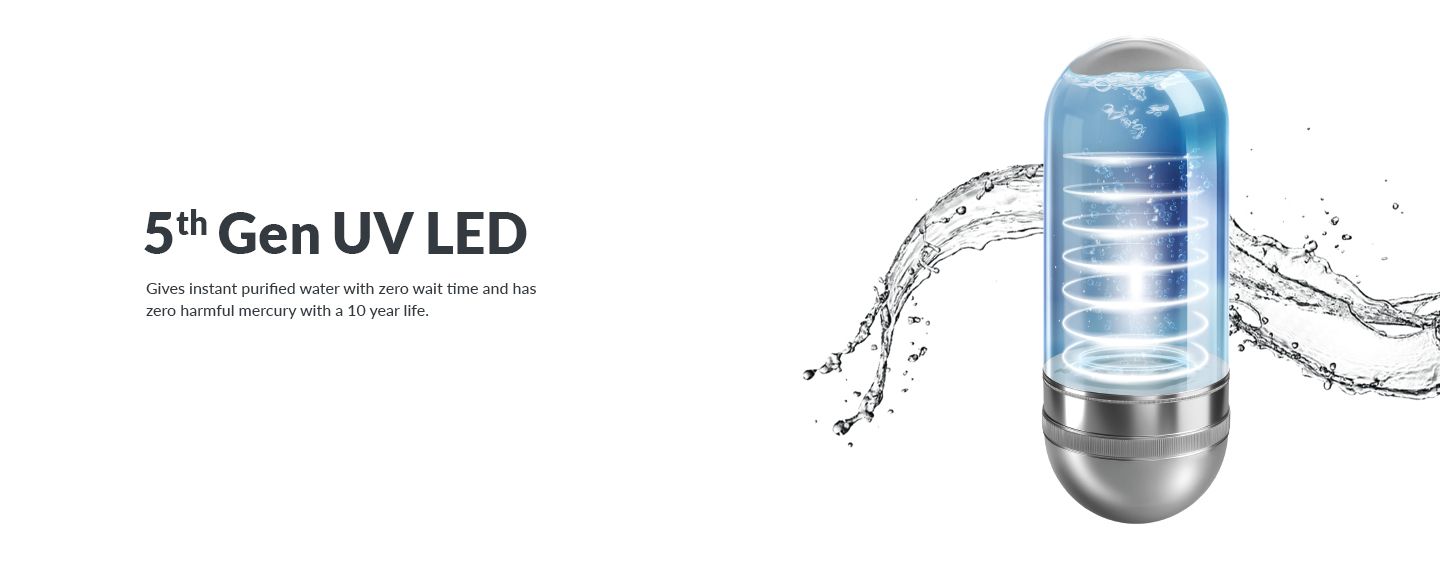

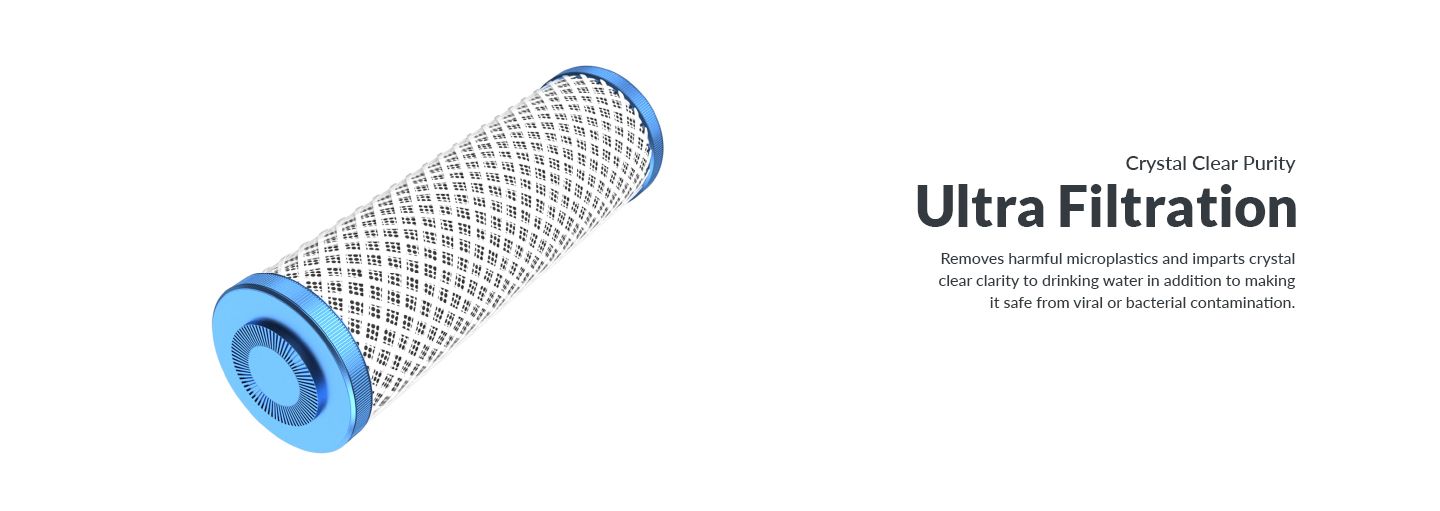

This water purifier ensures you get the purest drinking water with the latest 5th Gen UV LED that is faster, free from Mercury, and lasts longer up to 10 years. The Ultra Filtration technology removes harmful microplastics and impurities to ensure 99.99% pure & safe drining water.
This high-performance water purifier is equipped with an inbuilt pump that provides consistent flow of water with zero wait time. The purifier's sleek, compact, and modern design makes it a superior choice for most households.
Integrated single-unit design
Inbuilt Pressure Pump ensures consistent water flow
Wheels & Handle for Easy Movement & Accessibility
First UTC with 5th Gen UV LED
| Feature | Details |
|---|---|
| Dimensions (WxDxH) | 257.8 x 461.5 x 390 mm |
| Installation Type | UTC |
| Storage Capacity | 6.6 Ltrs |

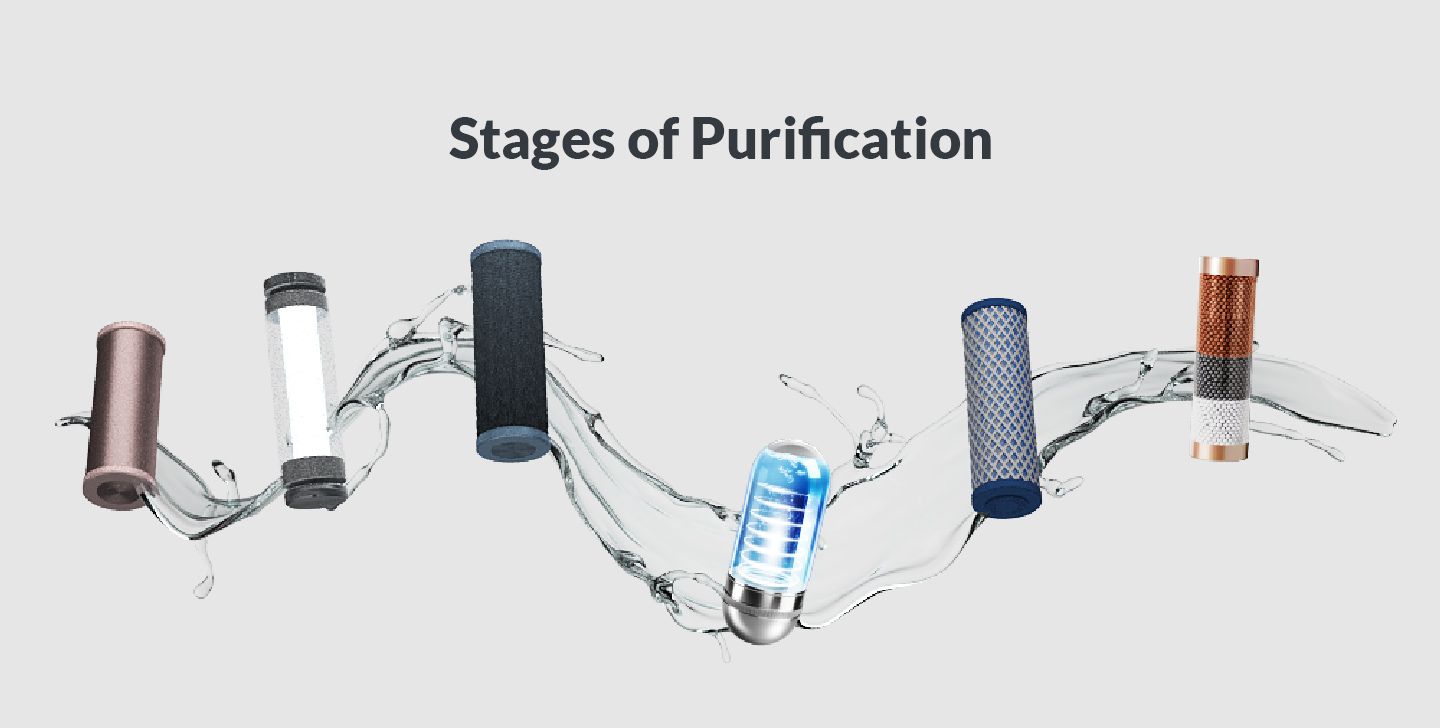

| Purification Modules | i-Filter, Chemi-Block, UV Reactor, UF filter, Active Copper with Zinc Booster Cartridge |
| Applicable TDS Range | 0 - 200 mg/L |
| Input Water Pressure | 0.3 to 2 Kg/cm2 |
| Input Water Temperature | 10 - 40 C |
| Input Water Chlorine (Max) | 0.2 mg/L |
| Input Water Iron | 0.1 mg/L |
| Input Water Turbidity (Max) | 5 NTU |
| UV LED Reactor | 6.2 Wattage |
| Operating Input Voltage | 150 - 250 V AC / 50 Hz |
| Power Consumption | 47 watts (maxx) |

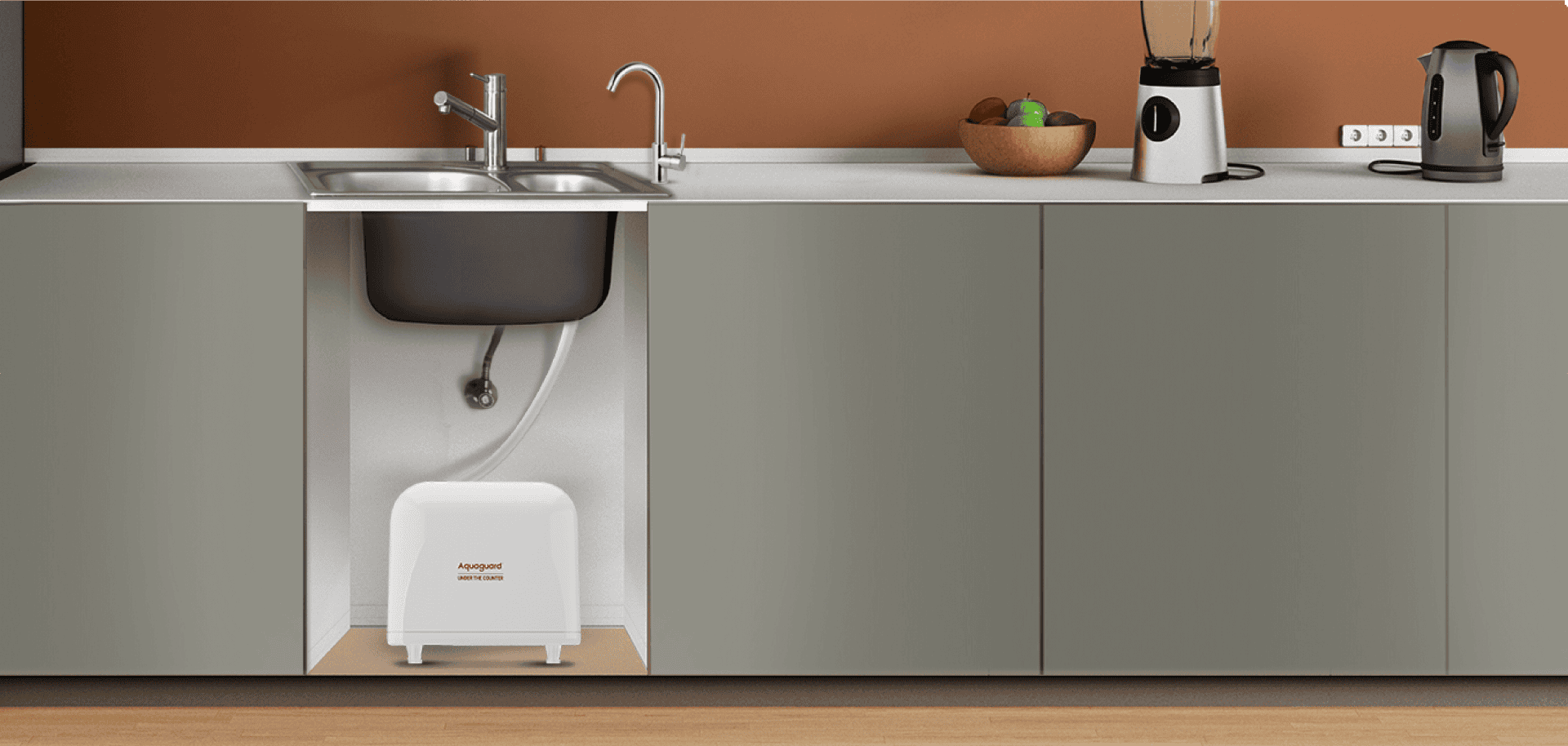

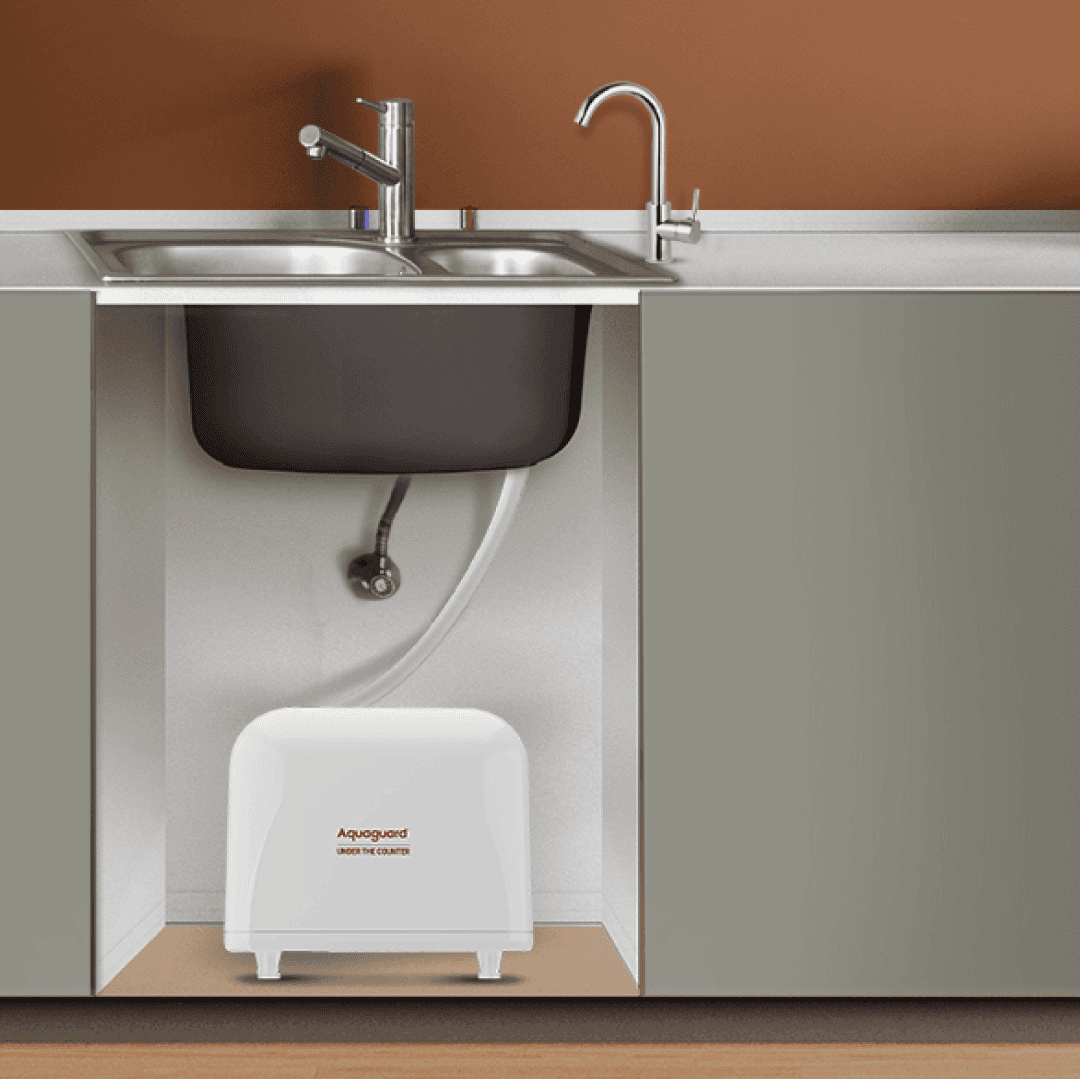

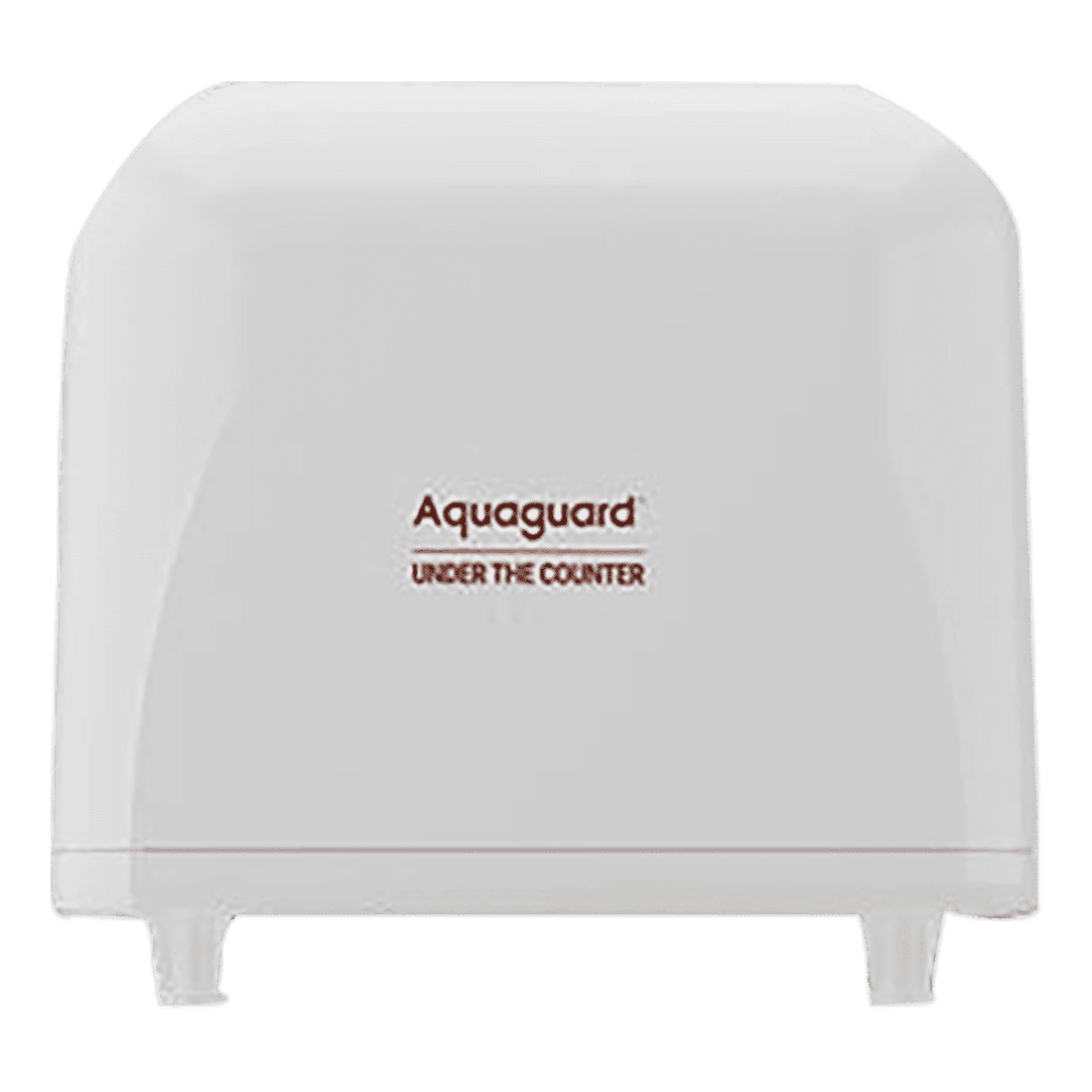

An inline purifier that sits under the sink for your modular kitchen needs, giving you access to pure drinking water with the goodness of copper & zinc.
| Feature | Details |
|---|---|
| Dimensions (WxDxH) | 290 x 195 x 290 mm |
| Weight | 3.6 Kg |
| Installation Type | UTC |
| Storage Capacity | Inline |
| Purification Modules | i-Filter, Chemi-Block, UV Reactor, Active Copper with Zinc Booster Cartridge |
| Applicable TDS Range | 0 - 200 mg/L |
| Input Water Pressure | 0.3 to 2 Kg/cm2 |
| Input Water Temperature | 10 - 40 C |
| Input Water Chlorine (Max) | 0.2 mg/L |
| Input Water Iron | 0.1 mg/L |
| Input Water Turbidity (Max) | 5 NTU |
| UV LED Reactor | 6.2 Wattage |
| Operating Input Voltage | 150 - 250 V AC / 50 Hz |
| Power Consumption | 20 watts (maxx) |

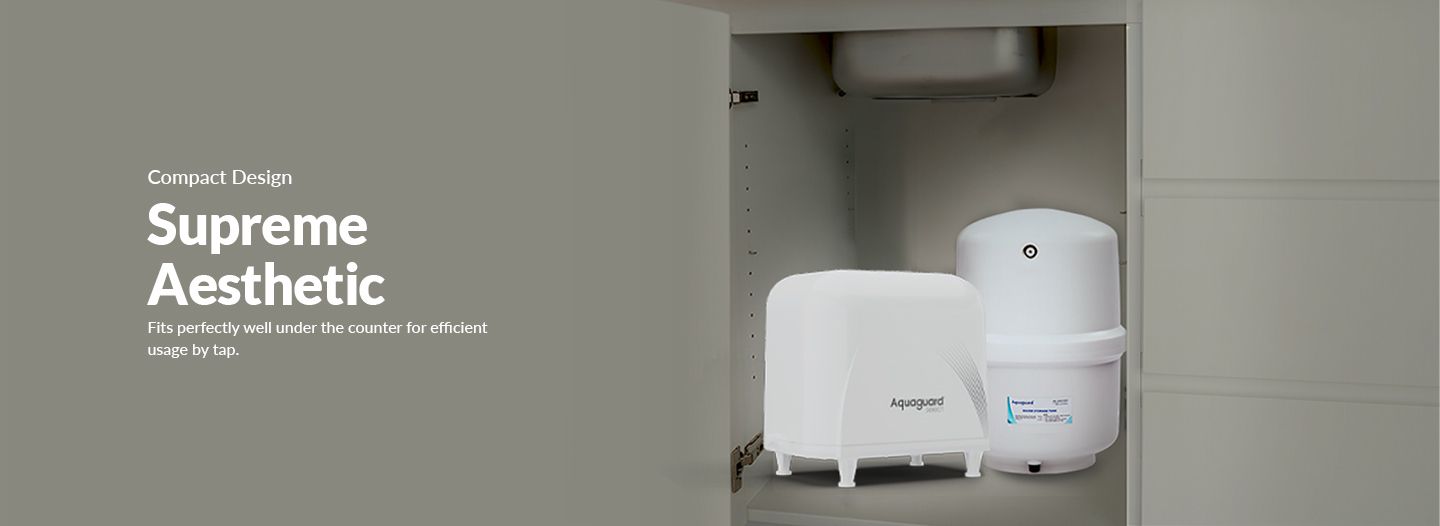

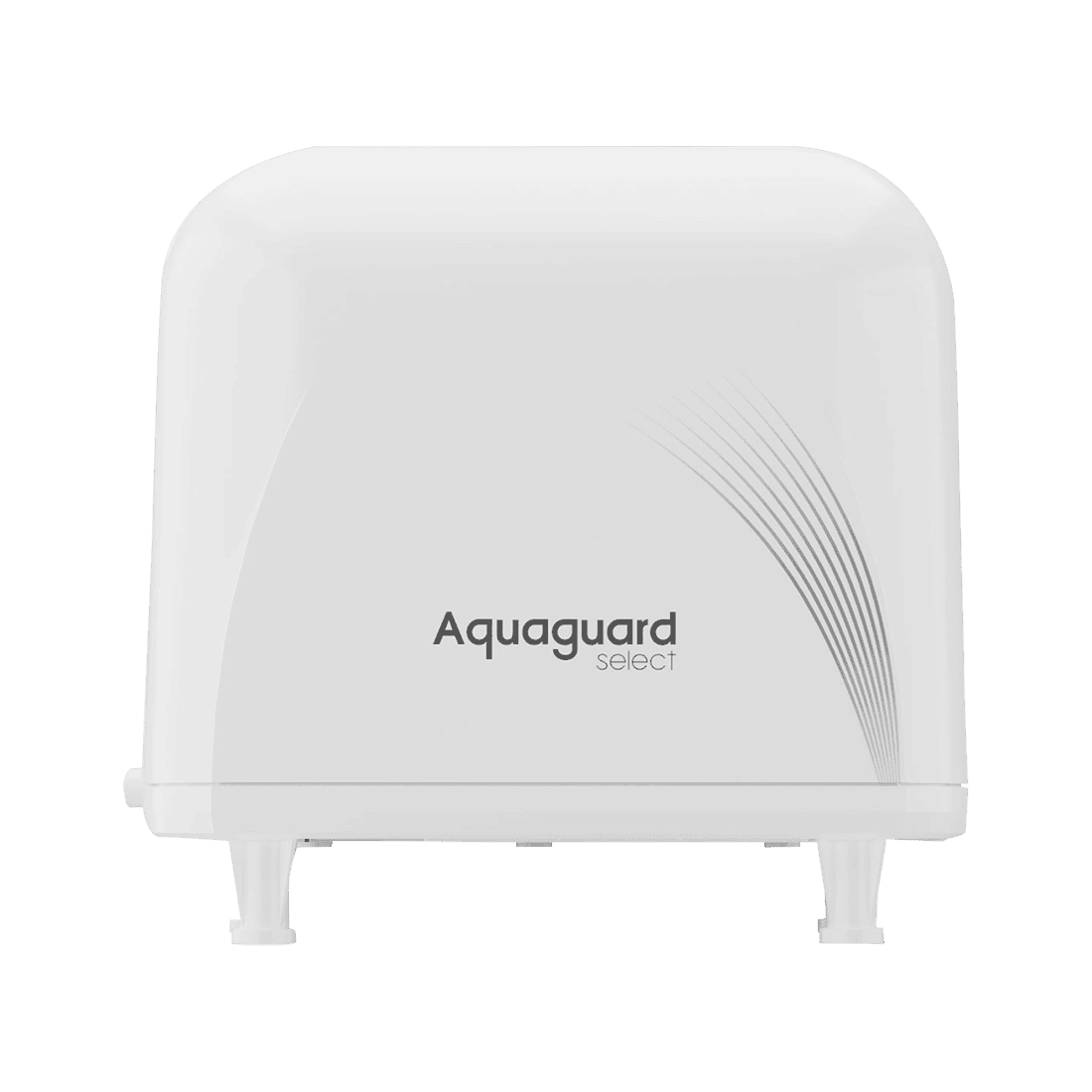

Fits under the sink of your modular kitchen and comes with a separate faucet to give you easy access to drinking water, wash fruits and vegetables.
Large 8L Storage Tank
Taste Adjuster ensures Sweet Tasting Water, Always!
Suitable for all Water Sources
Separate Faucet for Drinking Water included inside box
| Feature | Details |
|---|---|
| Country of Origin | India |
| Dimensions (WxDxH) | 275 x 285 x 195 mm |
| Filter Life | 6000 litres |
| Included In The Box | Water Purifier, Accessory (Input pipe, Reject water pipe, Diverter valve), Warranty Card |
| Input Water Chlorine (Max) | 0.2 mg/litre |
| Input Water Iron (Max) | 0.1 mg/litre |
| Input Water Pressure | 0.3 to 3.0 kg/cm2 |
| Input Water Temperature | 336 |
| Input Water Turbidity (Max) | 5 NTU |
| Life of UV Lamp | 5000 burning hrs |
| Membrane Type | Thin film composite RO |
| Operating Input Voltage | 335 |
| Power | 40 watts |
| Power Consumption | 40 watts |
| Purification Modules | HD Filter, Chemi block, Mineral Guard, RO Cartridge, UV e-boiling, Taste Adjuster, Biotron Cartridge, Active Copper Maxx with Zinc Booster Cartridge |
| Weight | 10.2 kg |
| Recommended For | Municipal water, Borewell water, Water from tankers |
| TDS | 1 to 2000 mg/L++ |
| UV Lamp | 4 watts |
| Water Flow Rate | RO Path - 200 to 250 ml/minute, UV Path - 550 to 650 ml/minute |
| Storage Capacity | 8 litres |
| Installation Type | Under the counter |
| Voltage | NA |
